Product Description

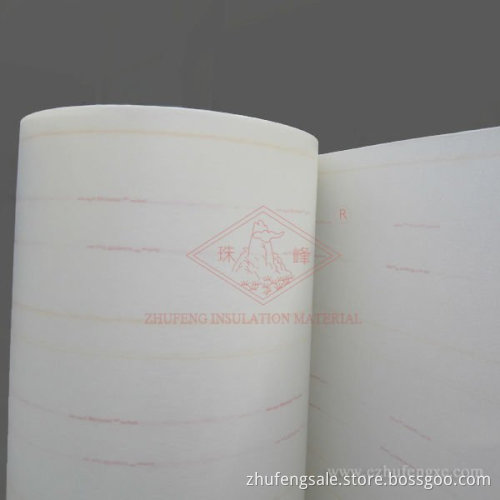

6640NMN insulation polyester film/nomex paper composite material
Materil: Nomex insulation paper(both sides)
Polyester film ( in center)
NMN(6640) Polyester Film & NOMEX Amide Fiber Paper Composites are a family of 3-ply laminates of NOMEX amide paper bonded to both sides of polyester film. It has not only the excellent dielectric and mechanical strength, it is as slot, interurn and liner insualtion for F and H grade motor electric appliances and transformer.
The specification available:
Thickness: 0.18mm 0.20mm 0.25mm 0.30mm 0.35mm
Width: 914mm color: White with orange line
Form: In rolls
Pacage: Carton and pallet Storage life---1 year

NO	Properties			Unit	Values
1	Nominal Thickness			mm	0.15	0.18	0.2	0.23	0.25	0.3	0.35
2	Thickness Tolerance			mm	± 0.02		± 0.03			± 0.04
3	Nominal Grammage			g/	180± 25	210± 30	240± 30	260± 35	300± 40	350± 50	430± 50
4	Tensile Strength	MD	No Bending	N/10	≥ 150	≥ 160	≥ 180	≥ 200	≥ 220	≥ 270	≥ 320
		MD	After Bending	mm	≥ 80	≥ 110	≥ 130	≥ 150	≥ 180	≥ 200	≥ 260
		TD	No Bending		≥ 90	≥ 110	≥ 130	≥ 150	≥ 180	≥ 200	≥ 250
		TD	After Bending		≥ 70	≥ 90	≥ 110	≥ 130	≥ 150	≥ 170	≥ 200
5	Elongation	TD		%	≥ 10		≥ 12
5	Elongation	MD			≥ 15		≥ 18
6	Breakdowm Voltage	TD		KV	≥ 7	≥ 10	≥ 11	≥ 12	≥ 13	≥ 15	≥ 20
6	Breakdowm Voltage	MD			≥ 6	≥ 8	≥ 9	≥ 10	≥ 12	≥ 13	≥ 16
7	Bond Strength at 25C				No delamination
8	Bond Strength at 155C				No delamination, no blister, no adhesive flow
9	Temperature				≥ 180
