Composite Fish Paper (6520)

6520-23PM Polyester Film Fish Paper Flexible Laminated Material is a two-ply flexible insulation materials consisting of fish paper and polyester film (Raw material of polyester film used thickness 0.023mm). The used adhesive is acid-free and temperature resistant. It has excellent electrical and mechanical properties, it can be used for low-voltage motors, electrical insulation in a groove, insulation and cushioning interterm insulation.
It enables easy processing on automatic machines.
It can be used as slot and phase insulation in low voltage machines or as interlayer insulation in transformers.
Special thicknesses or combinations can be supplied according to customer.

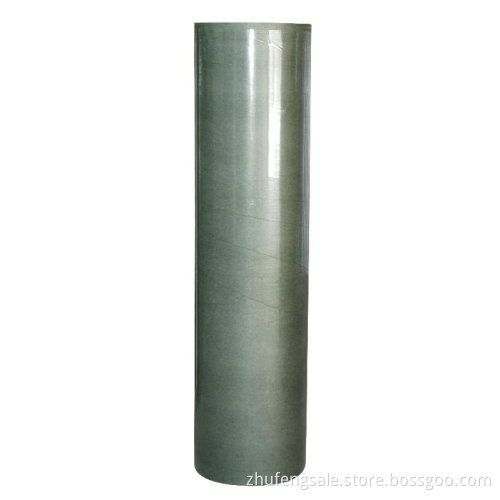

Products can be supplied in rolls, sheet, tapes or shapes according to customer requests.
Grade E insulation.
Avaliability thickness: . 15, 0.17, 0.20, 0.25, 0.30mm
Breadth: 1000mm.
