Alkyd Varnished Glass Cloths (2432)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Product Description

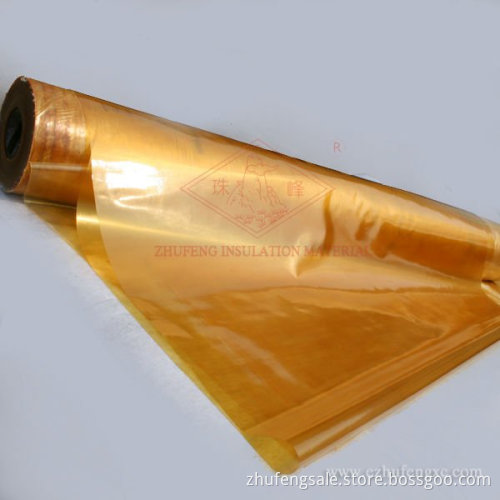

It is prepared by impregnating the electrical glass cloth with alkyd resin by baking treatment. With high mechanical strength and electrical properties, used for the insulating binding and liner of the electrical appliances.
Thickness: 0.11 mm; 0.13mm; 0.15 mm; 0.17 mm; 0.20 mm; 0.25 mm
Width: 15 mm; 20 mm; 25 mm; 50 mm; 1000 mm; 1200mm
Heat-resistant: 130, class B insulation
Warranty; Six months
Quality Standard: JB/T8148.1-1991.
Thickness: 0.11 mm; 0.13mm; 0.15 mm; 0.17 mm; 0.20 mm; 0.25 mm
Width: 15 mm; 20 mm; 25 mm; 50 mm; 1000 mm; 1200mm
Heat-resistant: 130, class B insulation
Warranty; Six months
Quality Standard: JB/T8148.1-1991.
| Item | Checking measure | unit | Requirments | ||
| 1 | appearance |
|
Uniform lacquer flim, no air bladder, no crease, or any other defect. lacqure film can’ t be felt when open, with neat cutting of the whole roll | ||
| 2 | width | mm | negotiable | ||
| 3 | Normal thickness | mm | 0.12± 0.020 | ||
| 4 | thermoplastic (70± 2º C, 24h) | / | Lacquer film no felt, no break off | ||
| 5 | Shrinkage 105± 2º C, 6h)(average ) | % | ≤ 4 | ||
| 6 | Volume Resistance | Ω . m | Normality ≥ 1.0× 1011 | ||
| 7 | Breakdown voltage | room temperature | Medium | KV | ≥ 7.2 |
| min | ≥ 4.8 | ||||
| heating | medium | ≥ 5.2 | |||
| min | ≥ 2.5 | ||||
| After bending | medium | ≥ 5.0 | |||
| min | ≥ 2.5 | ||||
