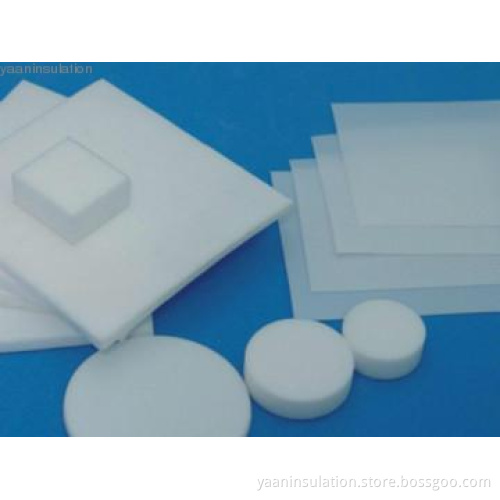

100% virgin PTFE molded sheet, PTFE sheet

100% virgin PTFE molded sheet, PTFE sheet, PTFE Tape, PTFE Tube, TEFLON :

1. Features of PTFE Sheet :

PTFE Skived Sheet is manufactured by molding with PTFE granular resin.PTFE is the most chemical resistance of all know plastics.PTFE does not age.it has a wide range of practicable temperature from -180 ~ 260°C.It has the lowest coefficient of friction of all know solid materials.

1).Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis;
2).High and low temperature resistance(-180 ~ 260°C.).
3).Abrasive resistance.
4).Electric insulation;good dielectric in mediums.
5).Non-aging.
6).It can be used in wide strength range,etc.

2. Use of PTFE Sheet :

1).seal, lining and gasket, scrap, guide rail,
2).dielectric material for different frequency,
3).bridge bearing slide.
4).seal liner and lubricant material in kinds of medium, especially corrosive situation;
5).dielectric material in kinds of frequency;
6).medium materials of capacities;
7).insulation material in electrics systems, etc.


3. Specifications of Ptfe Sheet :
Thickness: 0.3mm to 8.0mm
Tolerance: 20micron for 0.3mm to 3.0mm
50micron for 3.0mm to 8.0mm

Teflon Skived Sheet
Thickness: 0.3mm to 8.0mm
Tolerance: 20micron for 0.3mm to 3.0mm, 50micron for 3.0mm to 8.0mm

Width: 10~2700mm
Operation Temperature: -180 to +260°C
Packing: plastic membrane inside , Wooden Box outside

Density: 2.1 to 2.3g/cm3
Tensile strength: ≥15.0Mpa
Tear elongation: ≥ 150%
Voltage: 10KV/mm
