insulation material 6640 NMN nomex polyester film nomex paper

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Specifications NMN nomex polyester film nomex paper

1. Made by PET film and nomex paper

2. Approvd by UL, ROHS

3. As slot, interturn, liner

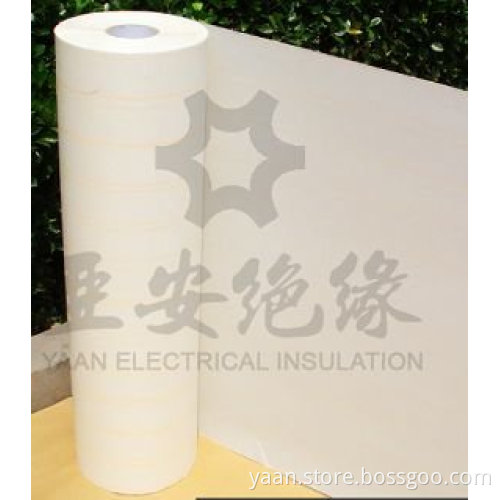

NMN nomex polyester film nomex paper is a three-ply flexible laminate consisting of PET film, covered on both sides with DuPont nomex paper NMN nomex polyester film nomex paper shows high thermal resistance, excellent mechanical properties like high tensile strength and high edge tear resistance and electrical properties, it was designed for automatic insertion machine NMN nomex polyester film nomex paper's technical data:

Properties	-----	Units	Values
Codes	NMN	MIL	222	232	242	252	272	2102	2142	333	353	373
Dimensions	nomex	mm	0.050	0.050	0.050	0.050	0.050	0.050	0.050	0.075	0.075	0.075
mylar	mm	0.050	0.075	0.100	0.125	0.190	0.250	0.350	0.075	0.125	0.19
nomex	mm	0.050	0.050	0.050	0.050	0.050	0.050	0.050	0.075	0.075	0.075
Nominal thicknesses	mm	0.17	0.19	0.22	0.24	0.31	0.37	0.47	0.25	0.30	0.35
Thickness tolerances	±%	15	15	15	15	15	15	15	15	15	15
Density	g/m²	170	200	230	270	360	450	595	255	325	380
Tensile strength (No bending)	MD	N/10mm	≥160	≥170	≥190	≥220	≥270	≥330	≥380	≥190	≥270	≥330
TD	N/10mm	≥90	≥105	≥120	≥150	≥200	≥300	≥350	≥180	≥200	≥300
Tensile strength (after bending)	MD	N/10mm	≥90	≥105	≥120	≥150	≥200	≥300	≥350	≥180	≥200	≥300
TD	N/10mm	≥90	≥105	≥120	≥150	≥200	≥300	≥350	≥140	≥160	≥300
Elongation	MD	%	≥15	≥15	≥15	≥20	≥20	≥20	≥20	≥15	≥20	≥20
TD	%	≥20	≥20	≥20	≥20	≥25	≥25	≥25	≥20	≥25	≥25
Breakdown voltage (no bending)	KV	≥8	≥11	≥12	≥14	≥19	≥23	≥28	≥12	≥15	≥19
Breakdown voltage (after bending))	KV	≥7	≥9	≥10	≥12	≥15	≥18	≥22	≥10	≥13	≥14
Bonding property at room temp.	no delamination
Bonding property at 155⁰C	no delamination, no bubble, no adhesive flow

Properties

-----

Units

Values

Codes

NMN

MIL

222

232

242

252

272

2102

2142

333

353

373

Dimensions

nomex

0.050

0.075

mylar

0.050

0.075

0.100

0.125

0.190

0.250

0.350

0.075

0.125

0.19

nomex

0.050

0.075

Nominal thicknesses

0.17

0.19

0.22

0.24

0.31

0.37

0.47

0.25

0.30

0.35

Thickness tolerances

±%

Density

g/m²

170

200

230

270

360

450

595

255

325

380

Tensile

strength (No bending)

N/10mm

≥160

≥170

≥190

≥220

≥270

≥330

≥380

≥190

≥270

≥330

N/10mm

≥90

≥105

≥120

≥150

≥200

≥300

≥350

≥180

≥200

≥300

Tensile

strength (after bending)

N/10mm

≥90

≥105

≥120

≥150

≥200

≥300

≥350

≥180

≥200

≥300

N/10mm

≥90

≥105

≥120

≥150

≥200

≥300

≥350

≥140

≥160

≥300

Elongation

≥15

≥20

≥15

≥20

≥25

≥20

≥25

Breakdown voltage

(no bending)

≥8

≥11

≥12

≥14

≥19

≥23

≥28

≥12

≥15

≥19

Breakdown voltage (after bending))

≥7

≥9

≥10

≥12

≥15

≥18

≥22

≥10

≥13

≥14

Bonding property at room temp.

no delamination

Bonding property at 155⁰C

no delamination, no bubble, no adhesive flow
