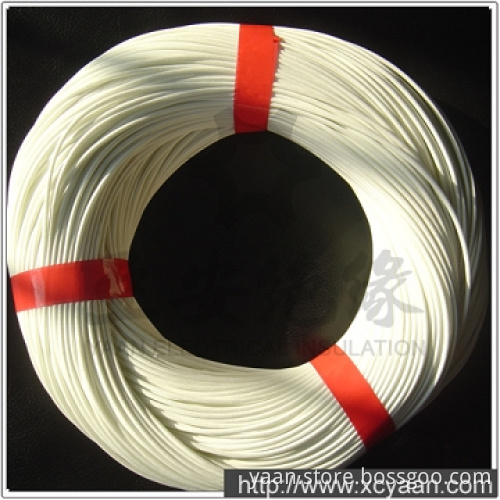

Electronic Accessories insulation materials 2740 Acrylic coated fiberglass sleevings

Fiberglass sleeving coated with acrylic resin is manufactured with E-glass fiber braided sleeving and coated with a layer of acrylic resin. Fiberglass sleevings Features: 1. It is Class F (155 degree) insulating material. This product has reliable heat resistance, good qualities of dielectric, fair softness, and elasticity, benzene resistance and oil resistance. Application: 2. This product can be used for wiring insulation and mechanic protection for electrical instruments, wireless sets and domestic electrical appliances. Fiberglass sleevings Technical date:

Item	Unit	Normal value
inner dia.& wall thickness(mm)	mm	inner dia(mm)		wall thickness(mm)
		standard	tolerance	min	max
		0.5-3.0	±0.20	0.45	±0.10
		4.0-9.0	±0.25	0.55	±0.15
		10-14	±0.50	0.70	±0.20
		16-20	±1.00	0.90	±0.30
flame resistance	/	not less than 45 sec./25mm
elasticity	/	no cracking or detachment of coating visible (1) after 3 hours at 200±2°C. (2) after 2 hours at –40±6°C
breakdown voltage	kv.min	room temp.	4.0
		after damp	2.0
heat resistance	/	no cracking detachment of coating visible after 72 hours at 200±5°C
quality warranty period	6 months

                                                                    For more informations of the 2740 Acrylic coated fiberglass sleeving, pls contact with Ms Jenny
