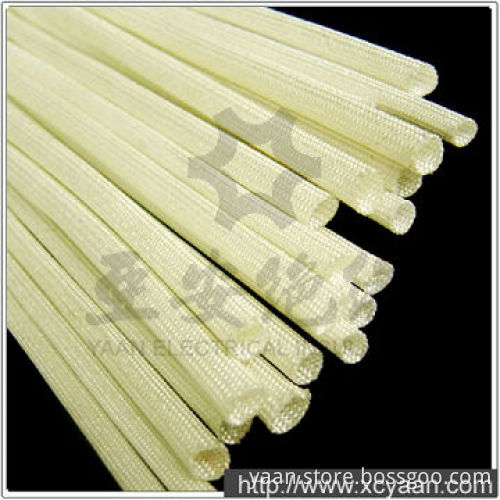

2753 Silicone resin coated insulation fiberglass sleeving

Silicone resin coated insulation fiberglass sleeving Basic Material: E-glass fiber braided sleeving
Impregnated Varnish: Self-extinguishing silicone resin
Temp. class: H(180 degree).

Silicone resin coated insulation fiberglass sleeving's Features and Applications:
- Excellent dielectric properties. Good stiffness and cold resistance
- Self-extinguishing time less than10s.

Silicone resin coated insulation fiberglass sleeving's Availability:
-Length: 1000mm+20mm-10mm
Continuous length can be supplied on request
-Color: Special colors can be provided on request.

Silicone resin coated insulation fiberglass sleeving's Technical data:

Properties		Units	Values
appearance		/	white, both of ends are trimmed. the coating is even, continues, adhered tothe fiberglass yarn fast.
length		mm	1000+20-10mm
diameter	0.5-2.5	mm	±0.25
	3-4		±0.05
	5-6		±0.50
	7-9		±0.60
	10-12		±0.80
wall thickness	0.5-2.5	mm	0.38±0.05
	3-4		0.45±0.05
	5-6		0.50±0.05
	7-9		0.50±0.05
	10-12		0.64±0.10
breakdown voltage		kV	2.5
time of self-extinguishment		s	≤10
heat resistance		/	after the sleeving has been treated under temperature of 250±5degree in a cabinet for 24hours,the coating of the sleeving should not appear detached, and discolored.
storage conditions		it should be stored in the dry, clean, and good ventilation, temperature less than 40°C, no fire warmer, no exposure in sun.
shelf time		6 months
secularheat resistance		≥180°C
