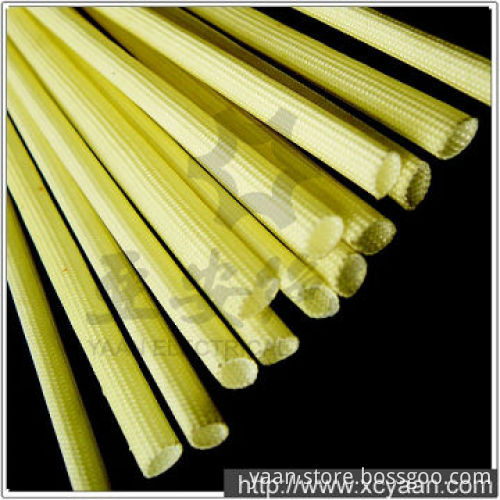

2740-Acrylic coated fiberglass sleeving

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Henan, China (Mainland)

Product Description

2740-Acrylic coated fiberglass sleeving Basic Material: E-glass fiber braided sleeving
Impregnated Varnish: Acrylic resin
Temp. class: F(155 degree)

2740-Acrylic coated fiberglass sleeving 's Features and Applications:
- Excellent dielectric properties, softness, elasticity. Good heat, benzene and oil resistance.

2740-Acrylic coated fiberglass sleeving's Availability:
-Length: 1000mm+20mm-10mm

Item	Unit	Normal value
inner dia.& wall thickness(mm)	mm	inner dia(mm)		wall thickness(mm)
		standard	tolerance	min	max
		0.5-3.0	±0.20	0.45	±0.10
		4.0-9.0	±0.25	0.55	±0.15
		10-14	±0.50	0.70	±0.20
		16-20	±1.00	0.90	±0.30
flame resistance	/	not less than 45 sec./25mm
elasticity	/	no cracking or detachment of coating visible (1) after 3 hours at 200±2°C. (2) after 2 hours at –40±6°C
breakdown voltage	kv.min	room temp.	4.0
breakdown voltage	kv.min	after damp	2.0
heat resistance	/	no cracking detachment of coating visible after 72 hours at 200±5°C
quality warranty period	6 months
