electrical insulation materials 2715 PVC fiberglass sleeving

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Henan, China (Mainland)

Product Description

Specifications 2715 PVC fiberglass sleeving

1 excellent softness, elasticity

2 good dielectric properties.

3 class A

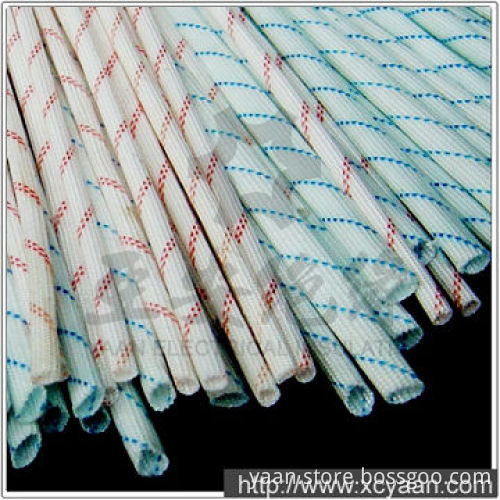

2715 PVC fiberglass sleeving is fiberglass sleeving coated with PVC resin, with very good flexibility and dielectric features, it is widely used as insulating and protection material for motor and electric appliance. Specifications of 2715 PVC fiberglass sleeving : Inner Diameter: 1mm---40mm
Breakdown voltage: 1.5KV, 2.5KV, 4KV temperature range: 105 °C ;
Colour: red line, blue line and all kinds of color Package of 2715 PVC fiberglass sleeving : It could be 1meter per piece, 100meters per roll, or according to clients' request. With bags or cartons.

Model No.	Product Name	Components	Temp. Class	Features and Applications
Basic Material	Impregnated Varnish
2715	Polyvinyl chloride coated fiberglass sleeving		Modified Polyvinyl chloride resin	A (105ºC)	-Excellent softness, elasticity, dielectric properties and chemical resistance. -As wiring insulation and mechanic protection for motor, eletric instrument and radio equipment.

Model No.

Product Name

Components

Temp. Class

Features and Applications

Basic Material

Impregnated Varnish

2715

Polyvinyl chloride coated fiberglass sleeving

Modified Polyvinyl chloride resin

A (105ºC)

-Excellent softness, elasticity, dielectric properties and chemical resistance.

-As wiring insulation and mechanic protection for motor, eletric instrument and radio equipment.

Item	Unit	Normal value
inner dia.& wall thickness(mm)	mm	inner dia(mm)		wall thickness(mm)
		standard	tolerance	min	max
		0.5;0.8	±0.10	0.20	0.50
		1.0;1.5;2.0;2.5;3.0	±0.15	0.20	0.75
		3.5;4.0;5.0;6.0;7.0;8.0	±0.25	0.30	0.75
		9;10;12;14;16;18;20	±0.50	0.40	0.90
Bending after heating	/	No cracking or detachment of coating shall be visible after bending around mandrels after 96h at 150℃
Bending at low temperature		No cracking or detachment of coating shall be visible after bending around mandrels while at -25℃
Breakdown voltage	kv		Average	Lowest
		Room temp.	4.0	2.5
		Elevated temp.	1.2	0.8
		Damp heat	1.2	0.8
insulation resistance	MΩ	≥1.0X103
The quality warranty period	6 month
Temperature index	105℃
