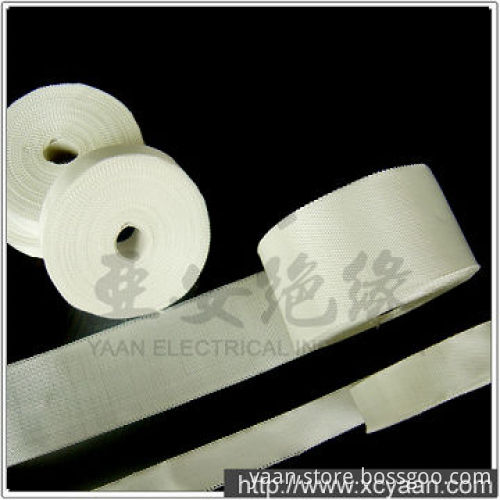

electrical Insulation woven tape Non-alkali fiberglass tape

Specifications Insulation woven tape Non-alkali fiberglass tape

1. made by the non-alkali glass fibre yarns

2. approved by UL, ROHS test

  Insulation woven tape Non-alkali fiberglass tape is made of the non-alkali glass fibre yarns Insulation woven tape Non-alkali fiberglass tape is made of alkali-free fiberglass with high insulation and thermal-resistant, used for the insulating binding tapes of the electrical appliances transformers. Insulation-woven tape--Non-alkali fiberglass tape's size: Length: = 50m Thickness:0.08-0.32mm Width:15,20, 25, 30mm Features and Applications of Insulation woven tape Non-alkali fiberglass tape :
-Good thermal resistance, excellent insulating, corrosion resistance
-as wrapping and banding material for transformers, electric motors and cables   Technical data of Insulation woven tape Non-alkali fiberglass tape: Standard:JC/T174-2004

Features and Applications:

-Good thermal resistance, excellent insulating, corrosion resistance. -as wrapping and banding material for transformers, electric motors and cables.

Items

Units

Values

thickness

mm

0.12±0.01

0.17±0.02

width

mm

20±2

25±2

50±2

20±2

25±2

30±2

length

m

29

29

30,44

24

24

24

Physical properties

code name

Longitude density

Latitudinal density

Thickness mm

Breaking strength  N/20mm

ET100

27±1

15±1

0.100±0.01

400

ET170

27±1

15±1

0.17±0.017

540

Appearance quality

items

units

standard,values

Broken-ends

Single broken-ends

mm

≤100

Double broken-ends

mm

≤30

Bad edge

Concave border

mm

≤2

Affect the use of the loose edge, tight edge, edge exclusion, thick edge

/

/

Inclusions

/

/

Besmirch

The sum of length and width of oil stain

mm

≤14

Put together the breaks

Allowed every coil

time

1

Chemical properties

items

units

standard,values

Alkali oxide and tolerance

%

≤0.8

Combustible Content

%

0.6-20

Storage requirements

Should be stored at temperatures not exceeding 40 °C, dry, clean and well-ventilated warehouse, not be near the fire source, heating.

          For more information please contact sales of YAAN Insulation Ms. Belinda Chen
